Black Gold Shield Poly Roof Roll – Pre-Applied Self-Adhesive Waterproof Membrane with High Strength

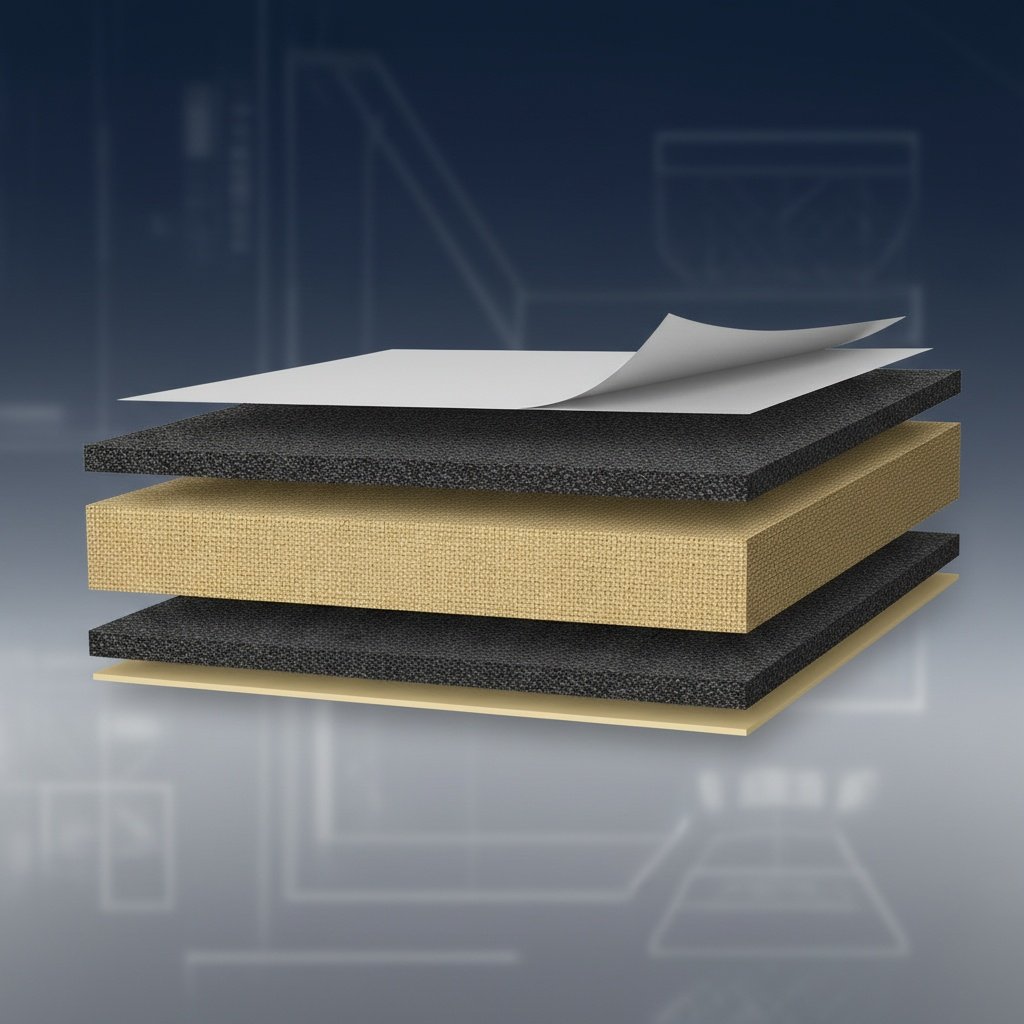

YSBP Black Gold Shield Poly Roof Roll is a pre-applied self-adhesive waterproof roll designed for pre-lay, anti-adhesive construction. It is made with a polyester base fabric as reinforcement, coated with modified asphalt on both sides. The bottom surface is covered with polyethylene film or fine sand as a release layer, while the top surface is coated with silicone release film or paper.

Product Features

• High tensile strength and elongation due to polyester base, with strong tear, puncture, and rupture resistance. Adaptable to substrate shrinkage and cracking.

• Excellent adhesion, with seams self-bonding to match the roll’s service life; safe and environmentally friendly. Full adhesion to the building structure effectively blocks liquid water and vapor penetration.

• After pre-applied roll installation, reinforcement and concrete can be laid directly without additional protection layers, accelerating construction progress.


Scope of Application

• Widely used for basements, bottom slabs, and side walls in underground projects such as excavated subways.


Product Specification Type

• Thickness: 4.0 mm

• Width: 1.0 m

• Area per roll: 10 m²


Executive Standards

• GB/T 23457-2017 《Pre-applied Waterproof Rolls》


Construction Method

1. Pre-lay rolls starting with horizontal surfaces first, then vertical surfaces.

2. Use a heavy roller on overlaps to ensure full adhesion.

3. For low-temperature installation, use a hot air welding gun to assist adhesion.

4. During vertical installation, mechanically fix edges every 400–600 mm within 10–20 mm of the edge.

5. At transitions from horizontal to vertical surfaces contacting permanent protection walls, use loose-lay method.

6. When no protection wall is installed, apply reliable protection measures at horizontal-to-vertical transitions.


Transportation and Storage

• Store different types and specifications separately; do not mix.

• Avoid sunlight and rain, ensure ventilation.

• Maximum storage temperature: 45℃. Flat storage: ≤5 layers; vertical storage: single layer.

• During transport, prevent tilting or lateral pressure; cover with tarpaulin if necessary.

• Shelf life: 1 year under normal storage and transport conditions.
