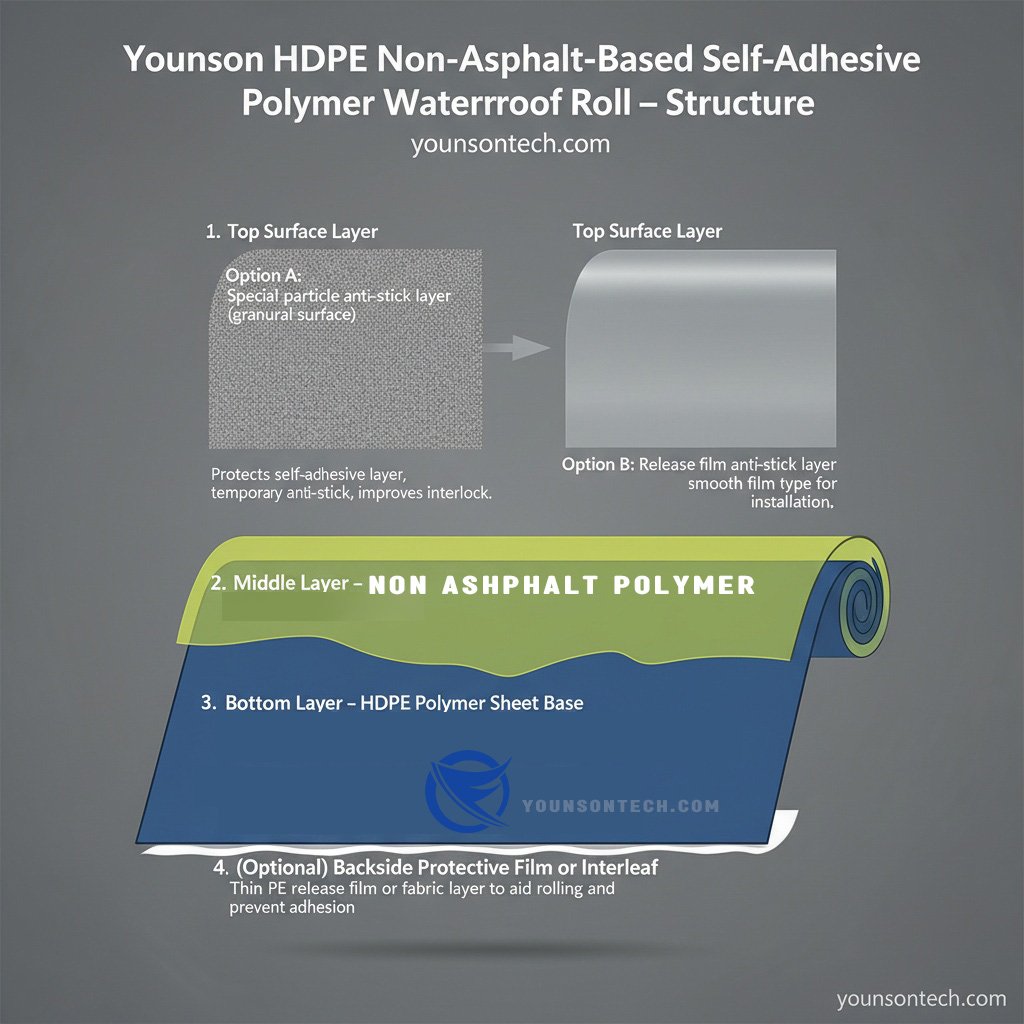

Younson HDPE Non-Asphalt-Based Self-Adhesive Polymer Waterproof Roll is made with an HDPE polymer sheet base, combined with a non-asphalt polymer self-adhesive layer and a special particle anti-stick layer or release film anti-stick layer. It is designed to bond effectively with cast-in-place concrete. Special active substances in the adhesive allow cross-linking with fresh concrete, achieving full microscopic adhesion (pre-laid self-adhesion), preventing water seepage, and forming a “rigid-flexible complementary” waterproof system.
Product Specification Type
- Top surface: special particle anti-stick layer or release film anti-stick layer (the release film type is used for auxiliary installation)
Scope of Application
- Suitable for underground constructions, vaults, tunnels, subways, municipal construction, and other waterproofing and anti-seepage projects.
Product Features
- Forms a composite waterproof system with the structure for improved reliability.
- Dust-resistant design; can be walked on safely during construction.
- High plastic deformation capacity for complex structural applications.
- Energy-efficient, environmentally friendly, with reliable lap joint fixation.
Executive Standards
- GB/T 23457-2017 《Pre-Laid Waterproof Roll Materials》
Construction Technology
- Clean the substrate
- Mark layout lines
- Lay pre-laid self-adhesive roll
- Handle overlaps
- Treat detailed nodes
- Tie reinforcing steel
- Pour concrete
Storage and Transportation
- Store different types and specifications separately.
- Avoid sunlight and rain; ensure ventilation.
- Maximum storage temperature: 45℃; store flat.
- Maximum stacking height: 5 layers.
- Keep away from acids, alkalis, oils, and organic solvents.
- Prevent tilting or lateral pressure during transport; cover if necessary.
Shelf life: 1 year from the date of production under normal conditions.
